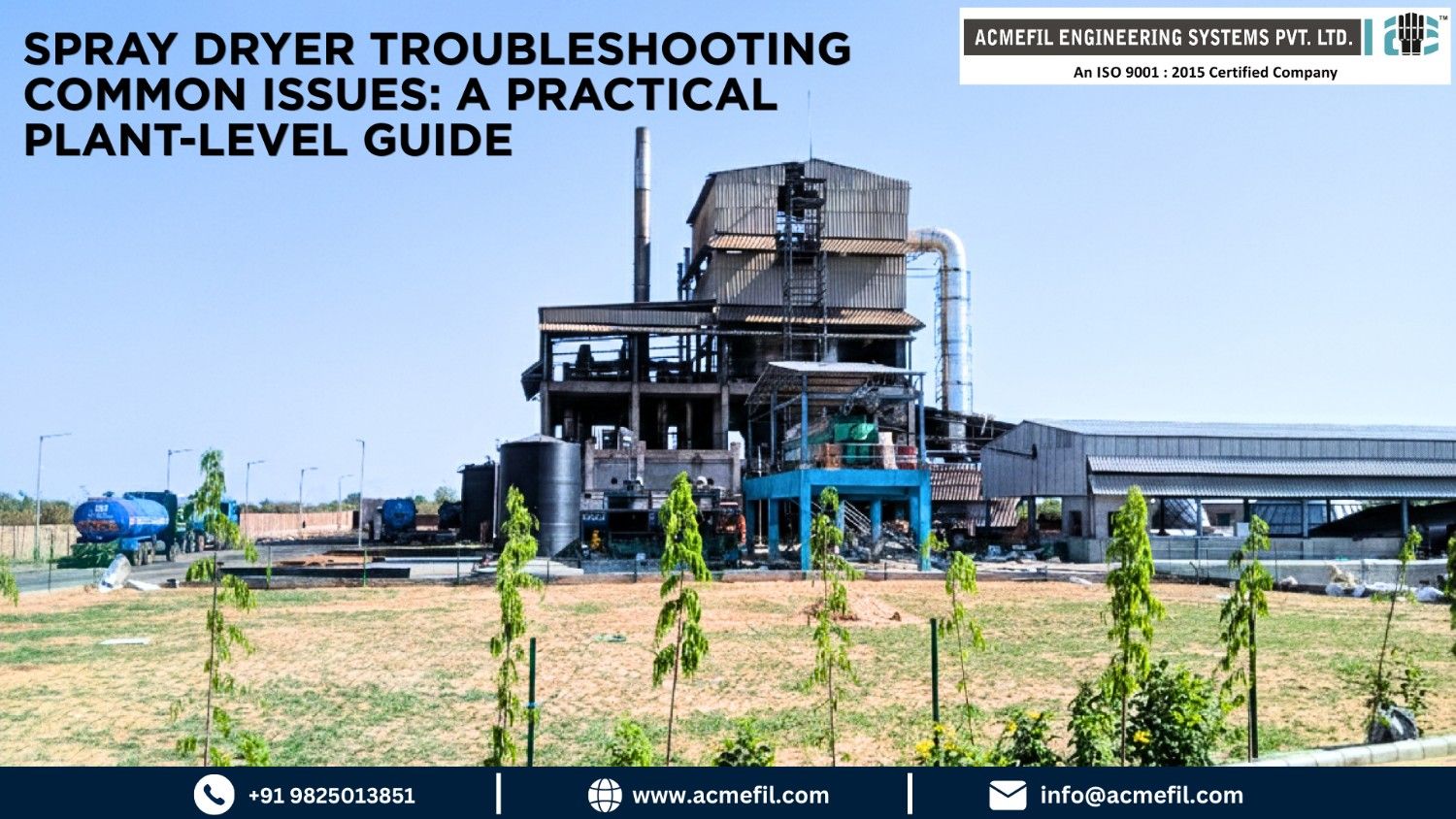

Spray Dryer Troubleshooting Common Issues: A Practical Plant-Level Guide

Spray Dryer Troubleshooting Common Issues: A Practical Plant-Level Guide

Most spray dryer troubleshooting common issues are not isolated machine faults. They are symptoms of imbalance between feed properties, atomization, drying air, residence time, and powder recovery.

When a plant reports wet powder, wall deposits, nozzle choking, low yield, or sudden shutdowns, I do not start by changing every setting. I first ask one question: what changed before the problem started?

That change may be feed solids, viscosity, atomizer condition, inlet temperature, outlet temperature, feed rate, airflow, cyclone sealing, bag filter condition, or discharge stability. A spray dryer is a connected system. One wrong correction can hide the real cause and create a second problem.

For a deeper foundation, read the guide on spray dryer operating principles and best practices before changing major process parameters.

Start Troubleshooting by Dividing the Spray Dryer Into Four Zones

A spray dryer can be understood in four operating zones.

This sequence matters. If the feed is unstable, the atomizer cannot produce a stable droplet size. If the atomizer is wrong, the drying chamber cannot correct the droplet behavior fully. If airflow is unstable, the cyclone and bag filter will also show symptoms.

That is why troubleshooting should move from feed to atomization to drying to separation, not randomly from one alarm to another.

Quick Spray Dryer Troubleshooting Table

Use this table as a first screen. Do not use it as a replacement for the equipment manual, plant safety procedure, or OEM service instruction.

1. Final Powder Moisture Is Too High

High moisture is one of the most common spray dryer problems. The usual operator reaction is to increase inlet temperature. Sometimes that works. Often it does not.

In my experience, final moisture is controlled more directly by outlet temperature, droplet size, residence time, and feed rate than by inlet temperature alone.

Check these first:

• Has the feed solids percentage reduced?
• Has viscosity increased?
• Is the feed pump delivering more than the expected flow?
• Is the atomizer producing larger droplets than before?
• Is the outlet temperature lower than the normal operating band?
• Is airflow lower due to fan, duct, damper, or filter restriction?
• Is powder leaving the chamber before drying is complete?

If the feed rate is too high, droplets do not get enough drying time. If atomization is poor, larger droplets carry more moisture and need longer residence time. If the outlet temperature is too low, the exhaust air is leaving with less drying capacity than required.

A practical correction sequence is:

1. Confirm the moisture reading with a reliable test method.
2. Check outlet temperature trend, not only the current value.
3. Verify actual feed flow against the set value.
4. Inspect atomizer or nozzle condition.
5. Check airflow and exhaust restriction.
6. Adjust one parameter at a time and record the result.

For detailed parameter logic, connect this section with how to optimize spray drying parameters.

2. Powder Is Overheated, Discoloured, or Degraded

Overheating usually appears as colour change, burnt smell, loss of activity, lower solubility, or dark particles in the collected powder.

This is common in heat-sensitive products such as food ingredients, enzymes, herbal extracts, pharmaceutical intermediates, and certain dyestuff products.

Possible causes include:

• Outlet temperature too high
• Low feed rate, causing excess heat exposure
• Poor droplet distribution
• Powder staying too long in hot zones
• Chamber deposits breaking loose as burnt specks
• Wrong hot air distribution
• Poor discharge or rotary valve operation

A common mistake is to focus only on inlet temperature. In spray drying, wet droplets are protected by evaporative cooling during the early drying stage. Once the particle surface becomes dry, overheating risk increases. That is why outlet temperature and residence time deserve close attention.

If the product is heat-sensitive, avoid aggressive temperature correction without checking the full heat history of the product. For difficult materials, pilot drying is often safer than guessing on a production dryer.

ACMEFIL’s pilot spray dryer can be used to evaluate atomization, temperature window, powder behavior, and drying response before committing to a full-scale design or major process change.

3. Particle Size Distribution Is Inconsistent

Inconsistent particle size usually starts at the atomization stage.

A rotary atomizer, pressure nozzle, and two-fluid nozzle do not create the same droplet pattern. They also respond differently to viscosity, feed solids, pressure, disc speed, and wear.

Check these areas:

• Feed solids percentage and viscosity
• Feed tank agitation
• Atomizer disc condition
• Rotary atomizer speed stability
• Nozzle pressure fluctuation
• Nozzle orifice wear
• Partial blockage
• Feed temperature variation
• Airflow pattern in the chamber

If you are using a rotary atomizer, disc condition and speed stability matter. If you are using a pressure nozzle, pressure and orifice condition matter. If you are using a two-fluid nozzle, compressed air stability also becomes important.

For selection context, compare nozzle vs rotary atomizer spray dryers and review spray dryer atomization techniques.

ACMEFIL manufactures both rotary atomizer type spray dryers and nozzle atomizer type spray dryers. The right choice depends on the feed and powder target, not on a generic preference.

4. Nozzle, Atomizer, or Feed Line Is Clogging

Clogging is easy to notice but not always easy to diagnose.

The blockage may be in the feed strainer, feed line, pump, nozzle, rotary atomizer feed path, or at the point where feed enters the hot zone. The cause may be mechanical, thermal, or material-related.

Common causes include:

• Feed not filtered properly
• Oversized suspended particles
• High viscosity
• Poor feed tank agitation
• Crystallization during holding
• Temperature drop in feed line
• Feed reacting or thickening over time
• Nozzle wear or damaged orifice
• Inadequate cleaning between batches

Do not keep increasing pressure blindly to force feed through a restriction. That may damage the nozzle, disturb droplet size, or create unsafe operating conditions.

A better troubleshooting route is:

1. Stop and follow plant safety procedure.
2. Check whether blockage is repeatable or batch-specific.
3. Inspect feed strainer and feed tank condition.
4. Measure viscosity and solids.
5. Check feed line temperature where relevant.
6. Inspect nozzle or atomizer parts.
7. Review cleaning procedure and cleaning frequency.
8. Restart only after the root cause is understood.

For nozzle-based systems, component condition is critical. ACMEFIL’s support ecosystem also includes spray nozzles and rotary atomizer-related equipment for complete drying plant design.

5. Powder Is Building Up on the Chamber Wall

Wall build-up is not just a cleaning problem. It affects product quality, yield, airflow, fire risk, batch contamination, and downtime.

In food, dairy, dyestuff, chemical, detergent, and pharmaceutical applications, wall deposits can come from different mechanisms. Some materials are naturally sticky. Some become sticky only at certain moisture and temperature combinations. Some deposits happen because droplets hit the wall before drying properly.

Check these causes:

• Spray pattern touching the chamber wall
• Atomizer alignment issue
• Droplets too large for chamber residence time
• Outlet temperature too low
• Product becoming sticky during drying
• Air distributor problem
• Poor chamber air pattern
• Incorrect feed concentration
• Fines recirculation imbalance
• Delayed powder discharge

A chamber deposit tells you where the process is failing. Deposits near the atomizer area often suggest spray pattern or feed issue. Deposits lower in the chamber may suggest incomplete drying, sticky transition zone, or air pattern issue.

Do not treat wall build-up only with more cleaning. First identify whether the deposit is wet, sticky, burnt, powdery, crystalline, or rubbery. The physical character of the deposit gives useful diagnostic information.

6. Yield Is Low or Powder Is Escaping

Low yield usually appears as less powder collected than expected, higher dust loss, fines in exhaust, or excessive powder inside cyclone and ducting.

Possible causes include:

• Cyclone leakage
• Wrong air velocity
• Fines too small for the cyclone design
• Bag filter blinding
• Damaged filter bags
• Rotary valve leakage
• Poor sealing at discharge points
• Duct leakage
• Exhaust fan imbalance
• Product too fine because of atomization settings

A cyclone is sensitive to air leakage and flow pattern. A bag filter is sensitive to dust load, pulse cleaning, fabric condition, and pressure drop. A rotary valve is sensitive to clearance, wear, and air ingress.

If powder recovery is the concern, do not inspect only the drying chamber. Inspect the entire separation train.

For related equipment context, review ACMEFIL’s bag filter page and the guide on spray dryer design and components.

7. Bag Filter Pressure Drop Is High

A rising bag filter pressure drop usually means the filter is becoming restricted. This can reduce airflow, disturb chamber drying, increase outlet moisture, and overload the exhaust fan.

Common causes include:

• Filter bags blinded with fine powder
• Pulse jet cleaning not working correctly
• Moisture reaching the filter
• Compressed air pressure issue
• Solenoid valve issue
• Excessive fines generation
• Sticky or hygroscopic powder
• Incorrect shutdown or cleaning sequence

This is a good example of why spray dryer troubleshooting should not be done by symptom alone. If bag filter pressure drop rises, the dryer may show high moisture or wall build-up because airflow has changed. The root cause may be downstream, not inside the chamber.

Check the pressure drop trend before and after cleaning. A sudden rise suggests process upset or powder carryover. A slow rise suggests progressive blinding or maintenance issue.

8. Feed Pump Flow Is Unstable

Unstable feed flow creates unstable droplet size. Unstable droplet size creates inconsistent moisture and particle size. The dryer may look like it has a temperature problem, but the actual issue may be feed delivery.

Check:

• Feed tank level
• Pump suction condition
• Air entry in suction line
• Feed viscosity change
• Agitation quality
• Pump wear
• Blocked strainer
• Valve position
• Pressure pulsation
• Control loop tuning

For slurry feeds, tank agitation is not optional. If solids settle, the atomizer receives a different feed composition minute by minute. That produces powder variation even when temperature settings look stable.

9. Contamination or Cross-Batch Carryover Is Appearing

Contamination can come from worn gaskets, poor cleaning, damaged filter bags, corroded contact parts, leftover product, or air ingress. In food, pharma, and specialty chemical applications, this is a serious quality issue.

Check:

• Cleaning procedure between batches
• Dead zones in feed lines
• Seals and gaskets
• Contact material compatibility
• Filter bag integrity
• Rotary valve cleanliness
• Chamber inspection records
• Product discharge area
• Air intake filtration

For hygienic and sanitary products, the cleaning method should match the product and equipment design. Do not assume that a cleaning method suitable for one product is suitable for another.

10. Unexpected Shutdowns, Vibration, or Mechanical Alarms

Unexpected shutdowns should be handled as a safety-first issue, not only as a production loss issue.

Common sources include:

• Atomizer vibration
• Bearing issue
• Motor overload
• Feed pump trip
• Exhaust fan issue
• Burner or hot air generator instability
• High temperature alarm
• Bag filter pressure alarm
• Interlock activation
• Power supply fluctuation
• Instrument failure

Start with the alarm history. The first alarm is more useful than the last alarm. Many operators only see the final shutdown message, but the earlier trend may show the actual cause.

Do not bypass interlocks to restart production. Interlocks exist because a spray dryer combines hot air, rotating equipment, powder, airflow, and sometimes solvent or combustible dust risk. If alarms repeat, stop and review with the equipment manufacturer or trained service team.

Preventive Maintenance Checklist for Spray Dryers

For a broader maintenance plan, connect this guide with maintenance tips for spray dryers.

Data to Collect Before Asking for Troubleshooting Support

A good troubleshooting discussion needs data. Without data, the conversation becomes guesswork.

Before contacting a spray dryer manufacturer, keep these inputs ready:

This is also the same information you should prepare when choosing the right spray dryer for a new product.

When a Pilot Trial Is Better Than More Troubleshooting

There are situations where production troubleshooting reaches its limit.

A pilot trial is useful when:

• The product is new
• Feed composition has changed
• The material is sticky or heat-sensitive
• Atomizer selection is uncertain
• Powder morphology is important
• Product moisture target is tight
• Scale-up risk is high
• The plant is facing repeated wall build-up
• The buyer is unsure between rotary atomizer and nozzle atomizer
• The plant wants to validate process parameters before full-scale procurement

ACMEFIL has an in-house R&D pilot plant facility where spray dryer trials can be conducted at 3 kg/hr water evaporation capacity. For uncertain products, that trial can answer a practical question that theory cannot: will this feed atomize, dry, and discharge as the required powder?

What I Look at First During Spray Dryer Troubleshooting

When I review a spray dryer issue, I do not begin with the biggest component. I begin with the process chain.

My first checks are:

1. Feed consistency
2. Actual feed rate
3. Atomization quality
4. Outlet temperature trend
5. Chamber deposit pattern
6. Powder moisture and particle size data
7. Cyclone and bag filter behavior
8. Alarm sequence
9. Recent changes in feed, utility, operator practice, or maintenance

Most problems become clearer when you put the symptom back into the process sequence.

A spray dryer is not just a dryer chamber. It is a feed preparation system, atomization system, hot air system, drying chamber, powder recovery system, and control system working together. Troubleshooting improves when the plant treats it that way.

FAQs

What is the most common spray dryer troubleshooting issue?

The most common issues are high final moisture, nozzle or atomizer blockage, wall build-up, inconsistent particle size, and low powder recovery. In most cases, the root cause is linked to feed variation, atomization quality, temperature control, airflow, or powder separation.

Why does spray dryer powder remain wet?

Powder may remain wet when the feed rate is too high, outlet temperature is too low, droplets are too large, airflow is restricted, or residence time is insufficient. Start by checking feed flow, outlet temperature trend, atomizer condition, and exhaust airflow before changing multiple settings.

Why does powder stick to the spray dryer chamber wall?

Powder sticks to the chamber wall when droplets contact the wall before drying properly or when the material becomes sticky at certain moisture and temperature conditions. Wrong spray pattern, poor airflow, low outlet temperature, large droplets, or sticky feed chemistry can all contribute.

How do I reduce nozzle clogging in a spray dryer?

Begin with feed preparation. Filter the feed, control viscosity, keep feed tank agitation stable, avoid oversized suspended particles, and inspect nozzle wear. Do not force higher pressure through a blocked nozzle without identifying the restriction because it can disturb spray quality or damage components.

When should a spray dryer pilot trial be done?

A pilot trial should be done when the product is new, sticky, heat-sensitive, solvent-based, difficult to atomize, or has strict moisture and particle size requirements. Pilot testing helps confirm atomization behavior, drying window, powder quality, and scale-up risk before full-scale equipment decisions.

Repeated spray dryer problems usually mean the process needs a structured review, not just another setting change. Share your feed details, target moisture, particle size requirement, current operating parameters, and photos of the issue. ACMEFIL’s technical team can review whether the problem is linked to feed preparation, atomization, drying conditions, powder recovery, or equipment maintenance.
